The Rayleigh Underground is a 38,000-square-foot modern theater and restaurant in the Toyota Music Factory in Irving, TX. With a capacity of 1,100, it offers a plug-and-play landscape for talent utilizing the latest in audio, visual, and lighting technology. The venue is minutes from DFW Airport and is complemented by an overhead 6,000-person concert venue operated by Live Nation.

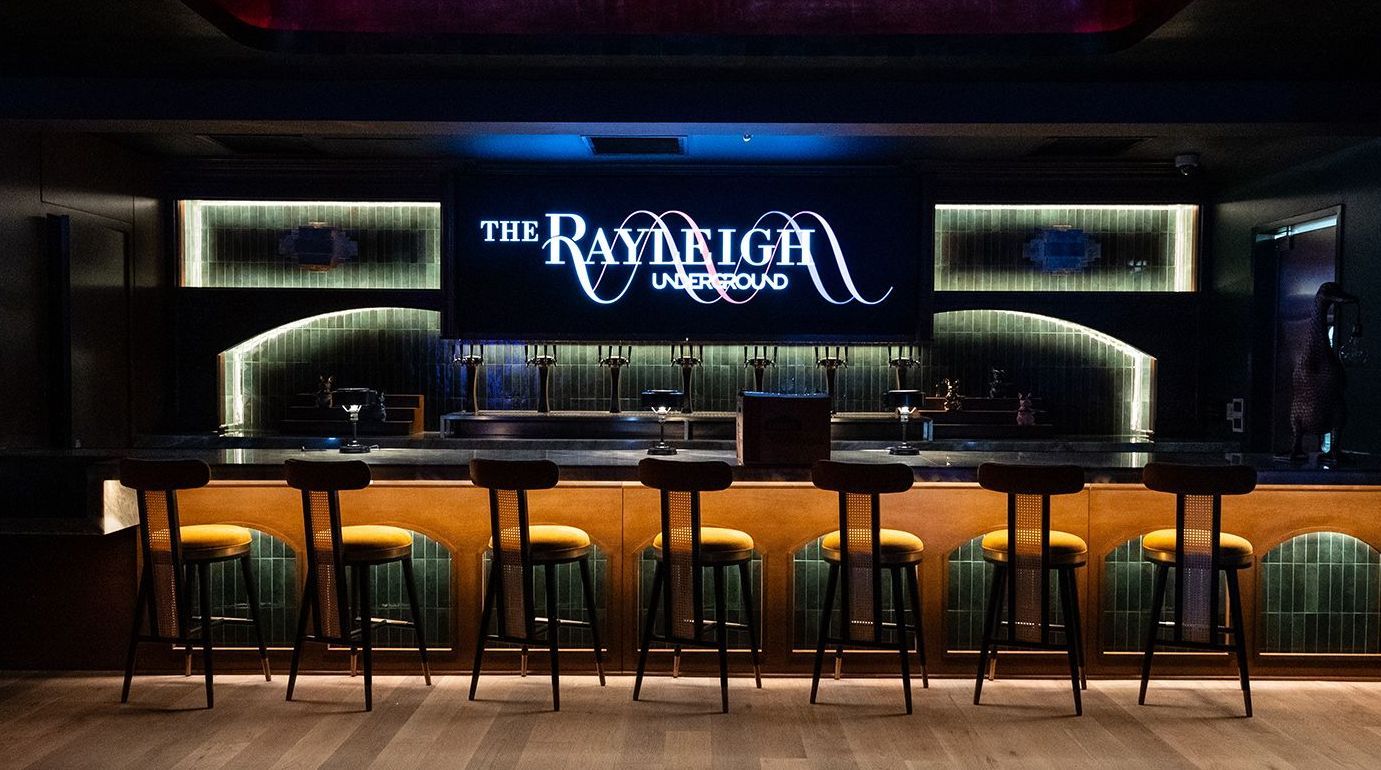

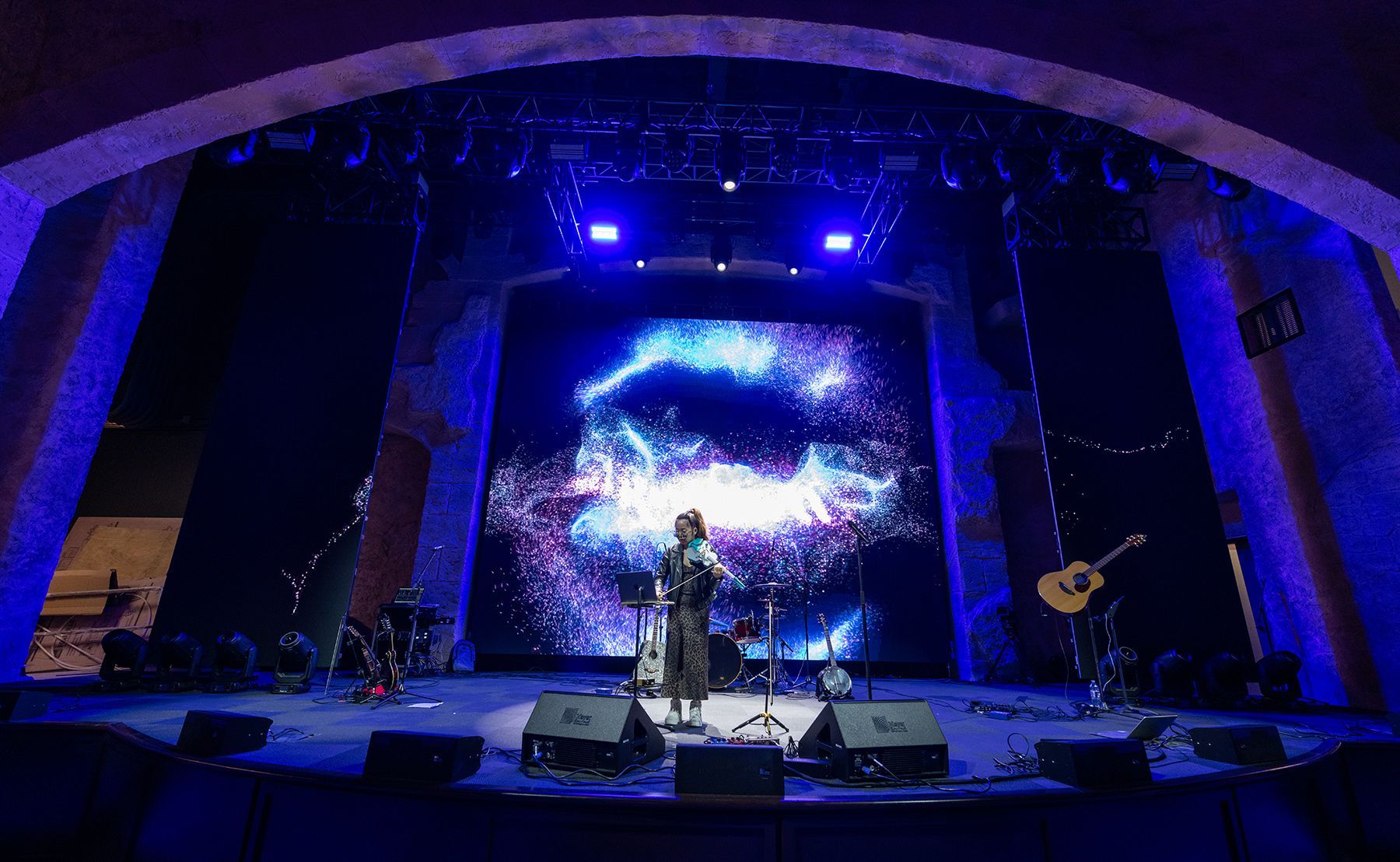

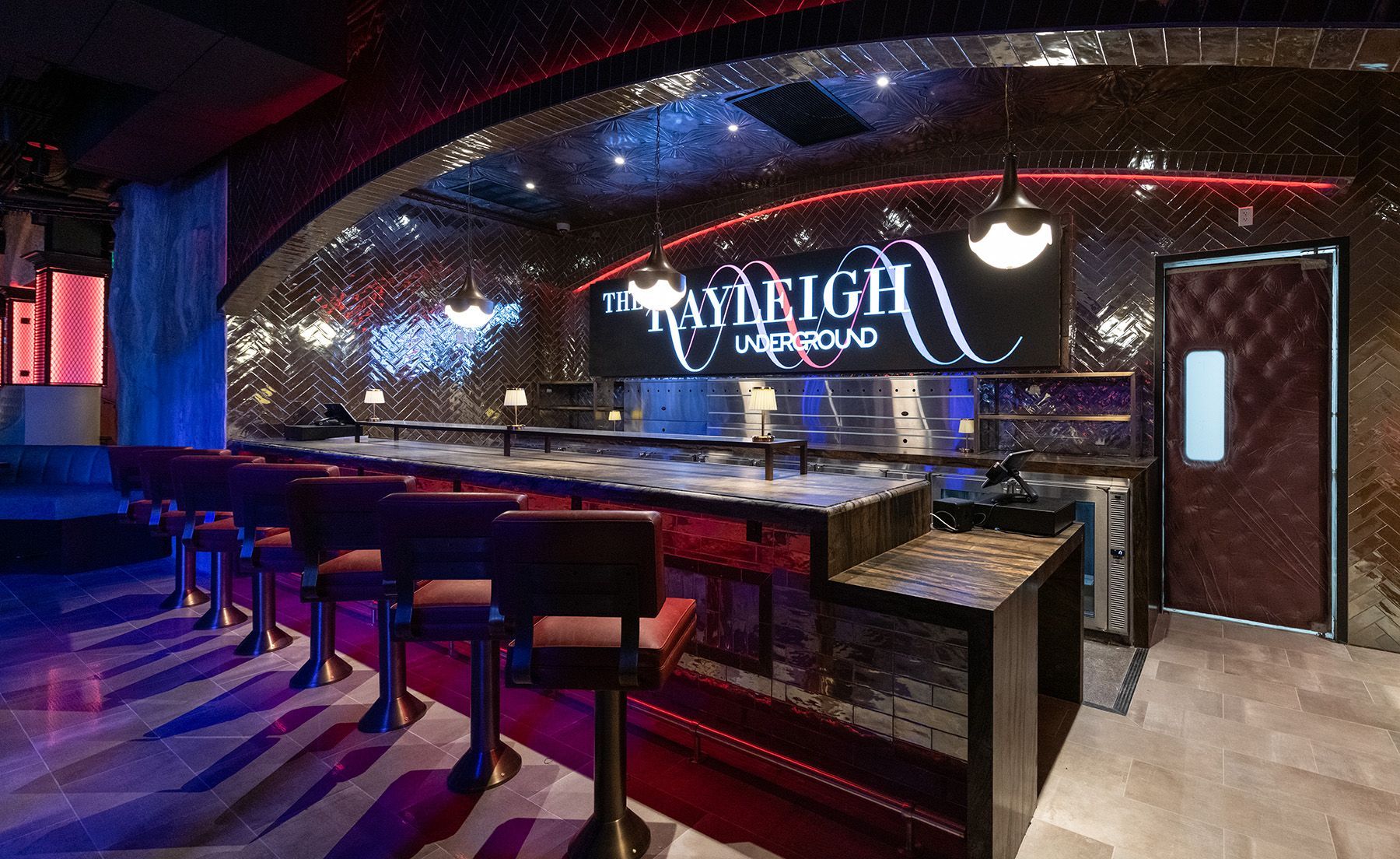

The Rayleigh features an impressive 18' x 50' stage, with a 36' x 18' Absen 2.9 pitch video wall on center stage, plus multiple interactive LED screens throughout; 5 bars, 2 VIP bars, hand-carved stone walls, a private green room, box office, merchandise room, and an AV/lighting room. The Rayleigh delivers an exceptional entertainment experience with its custom finishes, modern furniture, trend-setting menus, and art installations.
For inquiries on playing at The Rayleigh, please contact Anderson Reese @ anderson@beatgig.com.
AUDIO SPECS
• Digico Quantum 225 Surface & MQ Rack Madi Package
• DMI Dante 64 CH @ 48kHz/%kHz 1/0 with Automatic SRC
• Digico SD-Mini Rack 192kHz
• Digico Quantum 225 Waves Card
• Waves Soundgrid Superrack, Essentials Plug-In Bundle,
Live Bundle & Pro Show Bundle
• 20x Meyer Sound Leopard Line Array
• 6x Meyer Sound 1100-LFC Subwoofer
• 13x Meyer Sound Ultra-X20 Fill/Delay
• Meyer Sound Galaxy 816DSP
• 4x Meyer Sound MJF-210 Floor Monitor
• QSC 6.5” 2-Way Ceiling Speaker
• QSC 10” 2-Way Surface Speaker
• 6x ULXD Shure Wireless Handheld System with KSM9 Capsule
• 2x ULXD Shure Wireless Bodypack System with Headset
• 6x Shure PSM1000 Wireless In-ear Systems (470-542M Hz)
• 4x RNHP Precision Headphone Amplifier
• 4x Teegarden Active 48v Phantom Powered Direct Box
• 2x Teegarden 2-channel Active 48v Phantom Powered Direct Box
• 6x Shure SM58 Dynamic Vocal Microphone
• 4x Shure SM57 Dynamic Instrument Microphone
• 1x Shure Beta91 Condenser Microphone
• 1x Shure Beta52 Kick Drum Microphone
• 3x Shure Beta98 Instrument Microphone
• 3x Shure SM81 Condenser Microphone
• 2x Sennheiser MKH416 Condenser Microphone
VIDEO SPECS
• 36’x18’ Absen PL2.9 Pitch Video Wall on Center Stage (3696 x 1848 resolution)
• 17’ Absen KL 1.5 II Pitch Video Wall - Level 1 VIP Bar Sports Book Experience
(3358 x 702 resolution)
• 10.5’ Absen KL 1.5 II Pitch Video Wall - Level 2 VIP Bar (2080 x 702 resolution)
• Absen PL 2.9 Pitch Chandelier LED (7728 x 168 resolution)
• Absen PL 2.9 Pitch DJ Façade LED (1008 x 336 resolution)
• Digital Projections 15K Laser to 23’x26’ Scrim behind FOH
• 4x 65" 4K TV on Balcony Level for IMAG of Stage
• Analog Way Aquilon Server
• Black Magic 40x40 Smart Hub
• NovaStar Processing
• Panasonic 4K PTZ Video Camera at FOH Booth
• Mac Studio wih Resolume
LIGHTING SPECS - MAIN ROOM
• 62x ROBE Painte Moving Head LED Spotlight Fixture
• 16x ROBE Tetra1 Moving Head Linear LED Strip Fixture
• 14x ROBE LED Beam 350 Moving Head Wash Fixture
• 56x ADJ Jolt FX Panel, Strobe Pixel Effect Light
• 12x Chauvet Color StrikeM Moving Strobe Pixel Effect Light
• 8x Chauvet Maverick MK Pyxis Moving Head Beam and Pixel Effect Fixture
• MA Grand MA3 light with 8,192 parameter console
PRIVATE DINING ROOM SPECS
• 2x 86" LCD 4K UHDTV Display
• 2x Shure ULXD Wireless Handheld Microphone
PLUS BOX OFFICE & MERCHANDISE ROOM

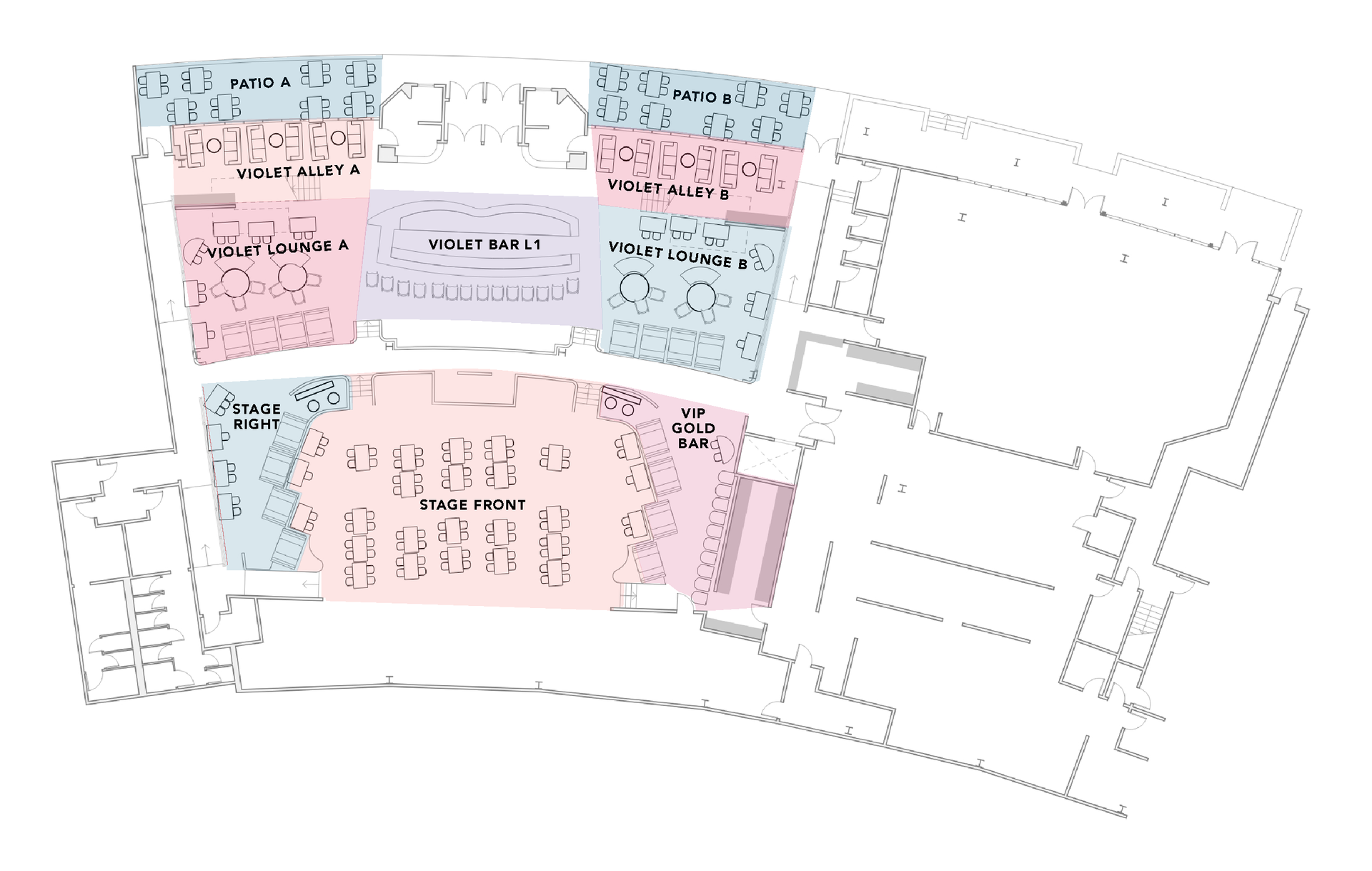

STAGE FRONT:
Standing: 250
Seated: 120
STAGE RIGHT:
Standing: 55
Seated: 42
VIP GOLD BAR:
Standing: 60
Seated: 40
VIOLET BAR:
Standing: 65
Seated: 50
VIP VIOLET LOUNGES
A & B:
Standing: 60 each
Seated: 51 each
VIOLET ALLEYS A & B:
Standing: 30 each
Seated: 24 each
• Size: 18' x 50'
• 36’x18’ Absen 2.9 pitch video wall on center stage

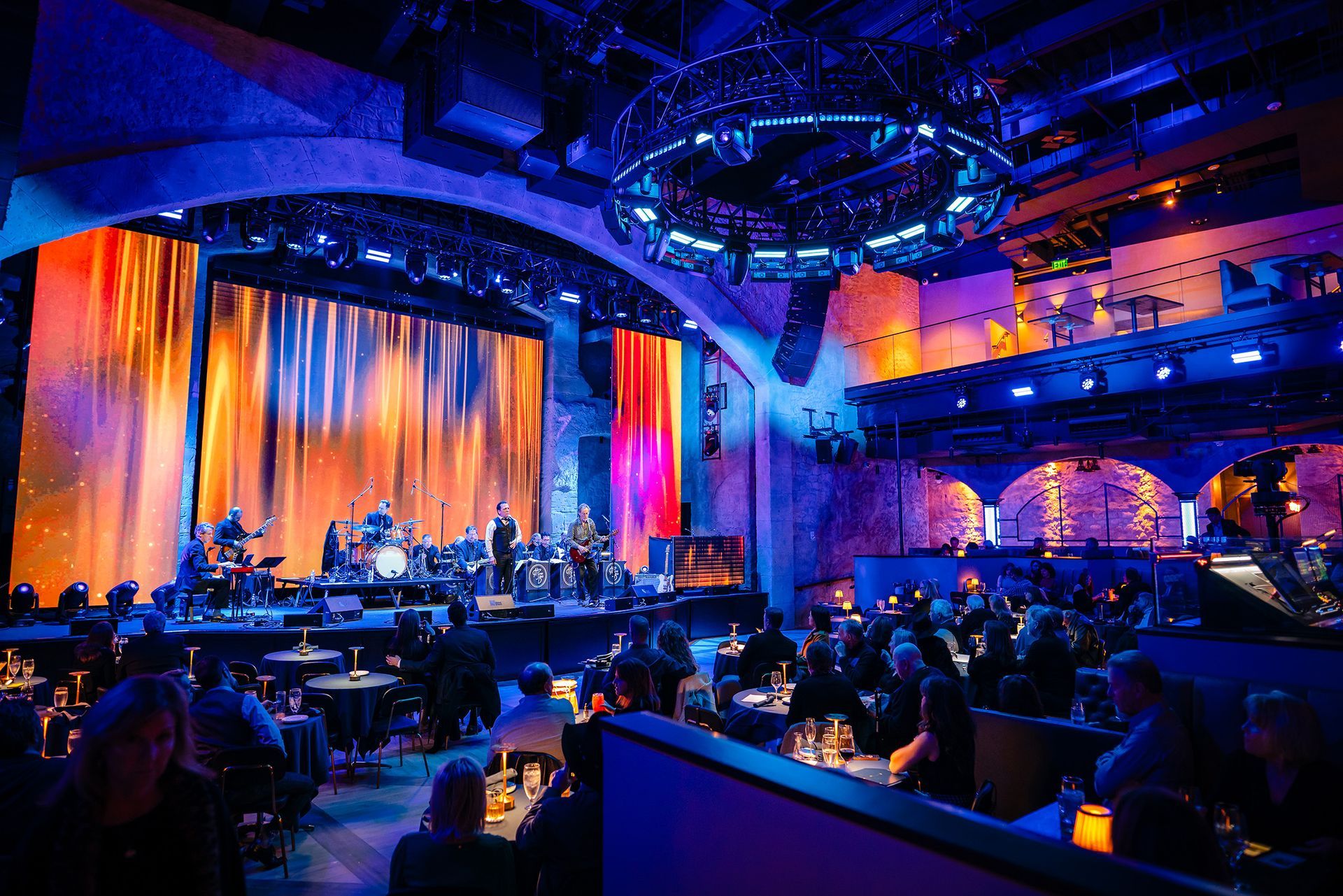

• 2-ring 23’ kinetic centerpiece dances above the main floor extending the show to the balcony level
• Sports Book Experience
• 17’ of Absen 1.9 pitch video wall
• 10.5’ Absen 1.9 pitch video wall
